The latest Telonics Argos Transmitter models represent a new generation of Argos systems designed
specifically for terrestrial mammal applications. The electronics and battery system are
integrated together and installed in a waterproof hermetically sealed brass housing that can be
mounted on collar. The electronics, battery and all the interconnections are completely protected
from moisture penetration and assure the longterm performance of the system. The antenna(s) is
exited through a glass to metal feedthru maintaining the hermaticity (waterproofing) of the unit.
All of the models contain a VHF beacon transmitter used to monitor the units during the course
of the study or to retrieve the units for refurbishment at the end of the study. The customized
collar mounted configurations are well suited for deployment and monitoring of terrestrial
mammals.
Key Features
- Powerful data collection and transfer capabilities allow the units to acquire,
queue, and transmit activity, temperature, mortality, and low voltage information.
- Real-time clock calendar (RTC) controls all timing functions.
- Flexible transmission schedules.
- Data compression is available when utilizing the Argos 31 byte message. Fewer
messages, and more data through.
- User Programmability allows changes in transmission, activity and temperature
schedules as well as Argos ID codes, uplink power levels and Argos frequencies.
- All data is Stored on Board (SOB) the unit and can be downloaded upon
retrieval.
- Units can be refurbished to their original condition at the factory.
- Shutdown with a small magnet allows users to turn each of these configurations "on" or
"off".
- Data Decoding - Data are processed using the Telonics
Data Converter (TDC), which provides complete data decoding of Argos DS files and supports
complete memory downloading. TDC provides a comma separated value (csv) output file with time
stamps for all data collected. TDC can also be run in the "batch mode" for hands off
operation.
- TDC allows you to plot Argos locations
with Google Earth.
Models
| Model |
Dimensions (in, cm) |
Canister Weight (g) |
Estimated Weight with Collar (g) |
Power Level (mW) |
Operational Life (hours) |
Temperature Range (°C) |
VHF Beacon Onboard |
| TAW-4210-2 |
2.78 x 1.8 x 1.42
7.0 x 4.5 x 3.5 |
210 |
325-600 |
500 (Typ) |
1248 |
-40 to +70 |
Yes |
| TAW-4213-2 |
2.78 x 1.8 x 1.42
7.0 x 4.5 x 3.5 |
210 |
325-600 |
800 (Typ) |
1032 |
-40 to +70 |
Yes |
| TAW-4313-2 |
2.9 x 2.3 x 2.0
7.4 x 5.8 x 5.1 |
340 |
600-1000 |
500 (Typ) |
3960 |
-40 to +70 |
Yes |
| TAW-4313H-2 |
2.9 x 2.3 x 2.0
7.4 x 5.8 x 5.1 |
340 |
600-1000 |
800 (Typ) |
2256 |
-40 to +70 |
Yes |
| TAW-4610-2 |
3.25 x 2.75 x 2.25
8.3 x 7.0 x 5.7 |
625 |
1000-1100 |
500 (Typ) |
7536 |
-40 to +70 |
Yes |
| TAW-4610H-2 |
3.25 x 2.75 x 2.25
8.3 x 7.0 x 5.7 |
625 |
1000-1100 |
800 (Typ) |
4200 |
-40 to +70 |
Yes |
| TAW-4710-2 |
4.25 x 2.7 x 2.3
10.9 x 6.9 x 5.8 |
875 |
1700-1900 |
500 (Typ) |
11208 |
-40 to +70 |
Yes |
| TAW-4710H-2 |
4.25 x 2.7 x 2.3
10.9 x 6.9 x 5.8 |
875 |
1700-1900 |
800 (Typ) |
6264 |
-40 to +70 |
Yes |
- Reduced power modules are available with approximately 22% increased life. Contact the lab
for more information.
- Operational life expectancy is based on a continuous series of transmissions of a 4-byte
Argos message at a 60-second repetition rate at 25°C.

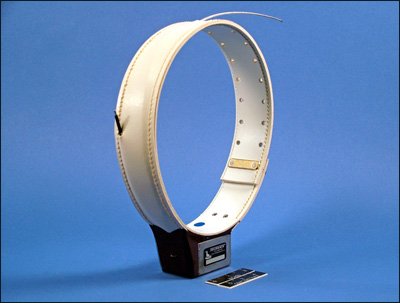

Photo Gallery
Specifications: Electronic and Packaging
TAW-4xxx Specifications (Uses the µGPSI-22 System)
Show
| Timing Accuracy: |
Timing is synchronized to GPS time when available. If the GPS time is not then internal
timing accuracy is:
6 min/year at 25° C
30 min/yr -20 to +40° C
47 min/yr -40 to +70° C
|
| Available Sensors: |
Mortality, Activity, Temperature, Low Voltage
|
| Argos Operating Frequency: |
ARGOS Frequencies:
401.6300MHz to 401.6800MHz in 1 kHz Steps
Brazilian SCD-1: Channels C1 to C9
401.6180MHz to 401.6220MHz in 500Hz Steps
|
| Argos Frequency Stability: |
±0.5 ppm maximum from -30° to +70° C
±2.0 ppm maximum from -40° to -30° C
|
| Argos Initial Frequency Error: |
±0.5 ppm maximum at +23°C, ±2° C
|
| Argos Aging: |
±2.0 ppm maximum after 1 year
|
| Argos RF Power Out: |
Standard Power Version: 400mW (+26dBm) or 500mW (+27dBm) nominal into 50 Ω (User
selectable using TPP programming software)
High Power Version (H): 800 mW (29 dbm) ±1db nominal into 50 Ω (User
selectable using TPP programming software)
Note 1: Transmit current will increase by approximately 10% from the +25° C
measurement. Conversely, at -40° C it will decrease by approximately 10% from the
+25° C measurement.
Note 2: Transmit current and RF power out are sensitive to VSWR. Both can be degraded
significantly if the antenna or antenna coax are of poor quality or not correctly tuned
and matched to the ARGOS/Brazilian frequency band 50 ohm RF output impedance.
|
| Argos Spurs and Harmonics: |
<-40dBc minimum, -60dBc typical (Coherent Spurious)
<-50dBc minimum, -60dBc typical (Non-coherent spurious)
|
| Available VHF Frequency Options: |
Option 705 140-154 MHz;
Option 707 144-158 MHz;
Option 715 154-171 MHz;
Option 720 160-177 MHz;
Option 740 174-192 MHz;
Option 750 191-210 MHz;
Option 760 210-237 MHz
The MK10 frequency can be programmed in 100Hz steps within a given frequency range.
|
| VHF Frequency Stability: |
Better than ±3ppm at room temperature;
±5 ppm total tolerance over full temperature range
|
| VHF Operating Temperature: |
-40° to + 70°C
|
| VHF Pulse Width: |
Programmable (10 to 250 msec)
|
| VHF Pulse Period: |
Programmable (560 to 5000 msec)
Period 1 (normal tracking mode)
Inactive period (if no motion for selected time)
|
| Available VHF Sensors: |
Mortality Sensor (parameters are user programmable)
|
| VHF Transmitter Timing: |
Programmable seasons and duty cycles.
|
| VHF Power Output: |
Programmable Medium/High power (measured into 50 Ω load).
Effective Isotropic Radiated Power (EIRP) varies, depending on packaging, antenna
configuration, and immediate environmental conditions. * California Users: This
transmitter meets the California requirement of EIRP <0.009W for all configurations.
|
| VHF Emission Designator: |
2k00P0N
|
| VHF Harmonic Suppression: |
Better than 30dB (>40 dB typical)
|
| VHF Spurious Emissions: |
<-35 dBc at 10kHz offset from carrier
|
| VHF Frequency: |
Aging: <2ppm/yr
Shock: <1ppm 3000g x 0.3ms x ½ sine x 3 directions
|
| VHF VSWR: |
RF output stable to 10:1 VSWR, all phases
Radiated harmonic levels are degraded with poor load VSWR.
Spurious emission specification maintained for >10:1 VSWR
|
| VHF Programming: |
Transmitter parameters programmable via antenna "1-pin" interface and Telonics TPP
PC software.
|
Packaging/Housing Specifications
| TAW-4xxx Packing/Housing Specifications: |
Electronics are sealed in hermetic metal canisters containing the electronics, batteries, and all interconnects. Glass to metal feed-thru technology is used to exit antennas and power. This packing is hermetic and can be tested utilizing a helium leak bomb test for hermeticity to assure < 1 part in 106 atmospheric CC per second.
|
Collar Specifications
| TAW-4xxx Collar Designs: |
Collar designs are species specific.
|
