| Timing Accuracy | 6 min/year at 25° C 30 min/year -20 to +40° C 47 min/year -40 to +70° C |
|---|---|
| Available Sensors | Mortality, Activity, Temperature, Low Voltage. Salt water switch also available on select models. |
| Argos Operating Frequency | ARGOS Frequencies: 401.6300MHz to 401.6800MHz in 1 kHz Steps Brazilian SCD-1: Channels C1 to C9 401.6180MHz to 401.6220MHz in 500Hz Steps |
| Argos Frequency Stability | ±0.5 ppm maximum from -30° to +70° C ±2.0 ppm maximum from -40° to -30° C |
| Argos Initial Frequency Error | ±0.5 ppm maximum at +23°C, ±2° C |
| Argos Frequency Aging | ±2.0 ppm maximum after 1 year |
| Argos RF Power Out | 250mW (+24.0dBm ±2dB) standard, 150mW (+22.5dBm ±2dB) option, both nominal into 50 Ω (User selectable using TPP programming software) |
| Argos Spurs and Harmonics | <-40dBc minimum, -60dBc typical (Coherent Spurious) <-50dBc minimum, -60dBc typical (Non-coherent spurious) |
Argos Eartag Transmitter
Argos only, without GPS
ETA-2620 Argos Eartag Transmitter
Models
| Model | Dimensions L x W x H (in, cm) |
Weight (g) | Operational Life (days) with transmissions 12 hours/day | Operational Life (days) with transmissions 4 hours/day |
|---|---|---|---|---|
| ETA-2620 | 1.6 x 0.8 x 0.7 3.9 x 2.0 x 1.9 |
26 | 75 | 200 |
Operational life information is based on 250mW, 4-byte Argos transmissions at 10°C. Dimensions are exclusive of antenna and piercing portion of tag. Weight includes antenna and attachment as shown.
Key Features
- This ear-tag transmitter operates through the Argos System. Argos is a satellite-based system that provides global coverage and particularly good performance in high latitude areas. Animal locations are calculated using the Doppler-shift in frequency of the transmitter's uplink transmission. (These units do not use GPS for location determination.)
- Mortality, activity, temperature, and low-voltage sensors are available. Data can be collected according to user-defined parameters and schedules and transmitted through Argos.
- Argos transmissions can be duty-cycled to extend battery life, and to schedule transmissions when the best overpasses are predicted. A real-time clock/calendar controls all timing functions.
- Can be programmed using Telonics Product Programmer (TPP). TPP makes it possible for users to program their own systems and simulate performance of the system prior to deployment.
- On-board sensors can be activated or deactivated. Data collection regimes and schedules can be altered. Sensor data can be added or deleted from Argos transmissions.
- Argos ID codes, transmission frequencies, and transmission schedules can all be modified.
- Data retrieved through Argos are processed using the Telonics Data Converter (TDC). TDC provides complete data decoding of Argos DS files, including location and sensor data, and provides for plotting of locations in Google Earth.
- Units are powered by primary battery. They are turned on or off using a magnetic switch. When turned off, these ST-26 based units consume less than 5.3µA.
Electronic Specifications
ST-26 (Argos Certified Transmitter) Specifications - Show
Eartag Attachment Tools

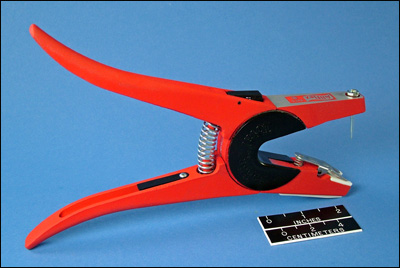

FX006525-001
Eartag Attachment Tool for ET-7 VHF eartag transmitter and ETA-2620 Argos eartag
Related Products
Telonics Data Converter (TDC) is used to convert raw data from Telonics transmitters into data reports and to display locations on Google Earth and Google Maps. You can review TDC reports in Microsoft Excel or other spreadsheet programs.
TPP Telonics Product Programmer
Telonics Product Programmer (TPP) is a powerful software tool used to program Telonics transmitters, and Telonics CR-5 and CR-7 collar release mechanisms. TPP gives you the ability to modify aspects of your Telonics GEN4 GPS and VHF transmitters including data collection and transmission intervals. TPP is designed for ease of use, with simple point-and-click navigation through the program.
The TSC-9A is a multi-use interface cable terminated with a USB A connector and a male BNC (bayonet style) connector. The cable is used to connect various Telonics products to a computer when using Telonics Product Programmer (TPP), Telonics Data Converter (TDC), or the CR-2a BCP-2 programming software. The BNC connector allows quick and easy attachment of various adapters.
Adapter, female BNC to alligator clips for use with the TSC-9A cable. This adapter is used for systems where programming/download connections are made using the antenna tip or saltwater switch buttons.
The TSTR-4 provides transmit indication for Argos PTTs (401.650 MHz). Provides both a visual indicator and audio tone with each transmission. Operates on a standard 9 volt battery. Designed specifically for short range (2-3 feet) testing of Argos transmitters.
