VHF Systems for Fish (FIS)

The information below on discontinued products is provided for individuals who are still using these older systems. Product descriptions may be time sensitive or even outdated. Please contact Telonics if you have questions.
FIS-050 transmitting System

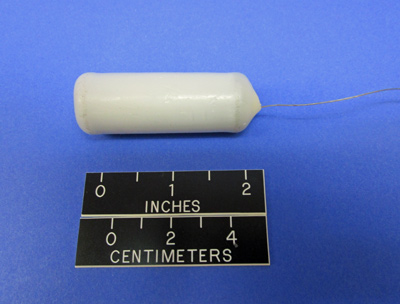

FIS-050 designed for implantation.


Configuration Dimensions
L x D (in, cm)
Weight (g) Life @ 60BPM Standard Power (months) Transmitter Electronics
FIS-050-2 2.2 x 0.7
5.6 x 1.8
30 8 MK-12
FIS-550-3 4.0 x 1.5
10.1 x 3.7
250 68 MK-11

Operational life is calculated using Telonics Product Programmer (TPP). Assumptions are use of 60 beats per minute, and operation 24-hours per day at 10°C. Duty cycling is available to extend operational life (e.g. operation for an average of 12-hours/day can increase life by ~90%). Reduced pulse rates can also extend operational life (e.g. use of 30 beats per minute, compared to 60 bpm can increase life by ~90%). Operation for extended periods at lower temperatures will decrease battery life.

Key Features

  • These models can be provided with attachment feet for external attachment, or with a wax coat for implantation. Implants can either be provided with a whip antenna as shown that would exit the fish through the incision line, or a completely internal model could be used as described in the VHF implants section.
  • FIS-xxx models are fully-hermetically sealed for maximum reliability, with the transmitter, battery, and interconnects sealed into a single metal housing. This is the same technology used by NASA for maintaining high performance electronics in harsh environments. With hermetic packaging, there is no problem with water penetration even after years of deployment, except in cases of severe physical damage to the canister. No polymeric packaging offers this level of reliability.
  • Customized duty cycling (on/off periods) is available, including seasonal cycles which can vary throughout the life of the transmitter. Timing is controlled by a Real-Time-Clock, which allows seasons to start and end on any desired calendar date and time.
  • Sensor options include MS6 mortality-motion, MA activity, MS4 temperature, and MS5 temperature-triggered mortality (sensor descriptions are provided below).
  • Data Logging Option is available to store mortality, activity, and/or temperature data in transmitter memory for download if the transmitter can be recovered.
  • Selectable power levels allow either greater range or greater life (4 levels with MK-12 electronics, and 3 with MK-11).
  • Can be refurbished to the original configuration at Telonics.
  • Water heavily attenuates radio signals, so VHF transmitters are applicable in relatively shallow water with low conductivity.

Sensor Options for VHF Transmitters using the MK-11 or MK-12 Electronics

MK-11 or MK-12 Sensor Options

Data Logging Option (Option 350)

The Data Logging Option for MK-11 and MK-12 transmitters (Option 350) allows sensor data from the MS6 mortality-motion sensor, MA activity sensor, and/or the MS4 temperature sensor to be stored in transmitter memory and made available for download if the transmitter is able to be retrieved at the end of a study. Additional information regarding how these sensors work is provided in the Sensor Options section below. This option requires use of Telonics Data Converter to download the stored data.

For the MS6 motion-mortality sensor, the data logging records each date and time the sensor switches from active/alive to inactive/mortality or back. Assuming that no other sensor measurements are being stored, the data log can accommodate about 0.5 million transitions. Note that smaller units may not have sufficient battery capacity to fill the memory. The most recent 9-16 such transitions are recorded even without this option, but this option stores all such transitions.

For the MA activity sensor, the data logging option stores accelerometer data at user-defined intervals. These intervals may be the same throughout the anticipated life of the transmitter or they may change "seasonally". The activity data recorded is the number of active seconds (or other defined classification interval) during a defined collection interval. For example the number of active seconds in a one hour collection interval would be saved as a number between 0-3600. Assuming that no other sensor measurements are being stored, the data log can accommodate about 2.0 million measurements based on 30sec, 1 minute, or 5 minute intervals or about 1.3 million based on longer intervals. The activity collection schedule for data logging is independent of any activity schedule selected to control pulse rate.

For the MS4 temperature sensor, the data logging option stores temperature data at user-defined intervals (in 0.16°C increments). These intervals may be the same throughout the anticipated life of the transmitter or they may change "seasonally". The data log can store an estimated 1.3 million measurements if no other sensor data are stored. The temperature collection schedule for data logging is independent of any temperature schedule selected to control pulse rate.

Specifications for Transmitter Electronics

MK11/12 Transmitter General Specifications

MK-11 and MK-12 beacons are microprocessor controlled pulsed-CW transmitters, designed for operation within the 137 - 225 MHz frequency range. Each MK-11 beacon transmits on a single, field-programmable frequency (within the frequency range that is ordered). MK-11 beacons also support 3 field-programmable power levels. The MK-12 beacon is crystal based, and therefore each beacon is built to operate on a specific frequency and with a specific power output (four power levels to choose from when ordering).

Frequency Range MK11:
137 - 143 MHz (option 700),
143 - 156 MHz (option 710),
154 - 164 MHz (option 720),
162 - 174 MHz (option 730),
164 - 182 MHz (option 740),
182 - 201 MHz (option 750),
201 - 222 MHz (option 760)

140 - 225 MHz
Frequency Tolerance MK11:
Calibration: ±3 ppm max at room temperature / ±5 ppm from -40° to +70°C
Aging: <1ppm/yr
Shock: <1ppm 3000g x 0.2ms x ½ sine x 3 directions

Calibration: ±17 ppm at room temperature / ±25 ppm from -40° to +70°C
Load: <7ppm typical for VSWR < 6:1
Supply Voltage: <3ppm typical over supply voltage range at 25°C
Aging: <1ppm/yr
Shock: <1ppm 3000g x 0.2ms x ½ sine x 3 directions
VSWR Stability MK11: RF output stable to 10:1 VSWR, all phases.
Radiated harmonic levels are degraded with poor load VSWR.
Spurious emission specification maintained for > 10:1 VSWR.

MK12: RF output stable to 5:1 VSWR, all phases.
Radiated harmonic levels are degraded with poor load VSWR.
Spurious emission specification maintained for > 5:1 VSWR.
Output Power
MK11: Field Programmable using TPP
Transmit Power Peak Power Output
Relative to Medium Power
Low 0.5 * Medium Power
High 2.0 * Medium Power

MK12: Ordering Options for Power Level
Option Transmit Power Peak Power Output Levels
Relative to Standard Power
200 Low (Temperature > -20°C) 0.5 * Medium Power (Higher efficiency)
202 Low 0.5 * Medium Power
204 Medium
206 High 2.0 * Medium Power

Output power is measured into 50 Ω load. Effective Isotropic Radiated Power (EIRP) varies, depending on packaging, antenna configuration, and immediate environmental conditions.
Emission Designator MK11: 2k00P0N -
California users: These transmitters meet the California requirement of EIRP < 0.0009W for all conditions.
MK12: 1k00P0N -
California users: These transmitters exceed the emission designator requirement of 2k00P0N for operation in California. The 1k00P0N emission designator is identical to the 2k00P0N except that it occupies only half of the 2 kHz bandwidth allowed by the State of California for wildlife tracking.
Harmonic and Coherent Spurious Suppression MK11: <-30 dBc into 50Ω load
MK12: Coherent Spurious <-10 dBc
Spurious Suppression MK11: <-35dBc typical at > 10kHz offset from carrier
MK12: Non-Coherent Spurious <-50 dBc
RF Pulse Width 15 msec standard
Can optionally be configured from 10 - 250 msec
Pulse Period Configurable from 250 - 5000 msec (12-240 Bpm)
RTC Accuracy / Seasonal Timing Temperature Compensated:
± 12min/yr max
Temperature Range -40°C to +70°C (Note: Temperature range is for the transmitter only. The power supply must provide the required peak current and voltage requirements for the transmitter over the expected temperature range.)
Shutdown Component Externally shutdown by presence of a small magnet
Available Sensors
MS6 Mortality - Motion Sensor
MA Activity Sensor
MS4 Temperature Sensor
MS5 Temperature-triggered Mortality Sensor
Sensor descriptions available separately
