SP-500 Seismic Sensor

SP-500

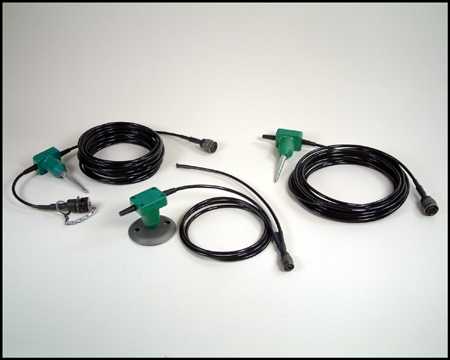

The buried geophone detects seismic activity at the detector location and generates an electrical signal that is analyzed by the processor to determine if a specified type of intrusion has occurred. With a single seismic detector (SP-500), users can monitor a small area or trail. With multiple detectors (SP-500P) connected in a string, users can monitor large open areas or perimeters. For hard surfaces such as concrete and rocks, users can purchase the ground plane adapter (GP-505) instead of the ground spike. Intrusion detection range depends on several variables, such as: type of terrain, processor sensitivity setting, number/type of intruders, etc.

Telonics can sell this product only to law enforcement, military, and government agencies; these products are for use only within such agencies.

Specifications

Mechanical

Size L x Dia5.25 x 1.25 in
134 x 32 mm
Weight16 oz
453 g

Operational

Minimum operating temperature-40° C
Maximum operating temperature60° C
Detection typeSeismic
Personnel detection, expected range50 feet
Vehicle detection, expected range100 feet
