GPS/Globalstar RECON Collars

RECON-4260-4 GPS/Globalstar system RECON-4560-4 GPS/Globalstar system
RECON-4260-4 on tan TPU collar, with side-looking GPS antenna and dorsal Globalstar antenna
and RECON-4560-4 GPS/Globalstar on TPU tan collar with CR-5 collar release mechanism

Telonics RECON models collect GPS positions and transfer the data to the user through the Globalstar satellite system.

RECON models are designed to offer a lower cost alternative to other satellite-linked GPS systems. Lower costs extend to service fees, which are typically ~$5/month per unit.

Performance features include a hermetically-sealed metal housing enclosing the electronics and power supply, and a dorsally mounted Globalstar antenna for better satellite connectivity as compared to units with side-mounted Globalstar antennas.

Programming flexibility allows:

  • Attempt a GPS position every 1 - 48 hours
  • Globalstar transmissions daily, every other day, or following every 1 - 47 GPS fixes (~6 GPS locations fit in each Globalstar transmission)
  • VHF selectable in 30 minute increments up to 24 hours per day, with selectable operation on each day of the week (Monday - Sunday)
  • Mortality detection and positioning with immediate notification directly to your mobile phone available using the Globalstar uplink.

Models

Model Housing Dimensions
L x W x H (in, cm)
Housing Weight (g) Estimated Weight with Collar (g)
RECON-4260-4 1.8 x 1.4 x 1.1
4.5 x 3.5 x 2.7
~93 ~135+
RECON-4460-4 2.3 x 1.4 x 1.1
5.9 x 3.6 x 2.7
~125 165 - 350
RECON-4560-4 2.8 x 2.0 x 1.5
7.1 x 5.1 x 3.8
~250 366 - 700
RECON-4660-4 3.0 x 2.7 x 1.9
7.6 x 6.9 x 4.8
~450 800 - 1000

Examples of Operational Life

Operational life estimates are calculated using Telonics Product Programmer (TPP), and are provided as examples only, with many other options possible. The estimates provided assume all GPS data is transmitted; battery life can be extended if some of the locations are exclusively stored on board and not transmitted.

Please consult with Telonics for assistance determining what would work best for your application.

Model Battery Life (years) with daily Globalstar transmission, and...
GPS schedule No VHF VHF 8 hours/day
RECON-4260-4 3 GPS/day 1.2 0.8
4 GPS/day 1.1 0.7
6 GPS/day 0.8 0.6
RECON-4460-4 4 GPS/day 1.8 1.4
6 GPS/day 1.5 1.2
12 GPS/day (2 Globalstar/day) 0.8 0.7
RECON-4560-4 4 GPS/day 4.5 3.5
6 GPS/day 3.7 3.0
12 GPS/day (2 Globalstar/day) 2.0 1.7
RECON-4660-4 4 GPS/day 8.8 7.0
6 GPS/day 7.3 6.0
12 GPS/day (2 Globalstar/day) 4.0 3.7

Operational life estimates assume temperatures of 0°C, VHF pulse period of 1500 msec (40 beats per minute), and average time to GPS fix as 75 seconds.

Key Features

Features relative to the Globalstar system

  • The Globalstar satellite network consists of 48 satellites in low-earth orbit. Overpasses provide continuous coverage over most terrestrial areas of the world, but the system is not worldwide because of its reliance on ground stations. Data received by the satellite is relayed to a ground station in real time and are available to the user within minutes. The coverage map for the Globalstar simplex system as used on wildlife is indicated by the map below. Areas in orange are primary coverage areas and those in grey crosshatch are areas of fringe coverage.
    * Note: Due to the fluid situation between Russia and Ukraine, the Globalstar coverage may be affected in some areas.

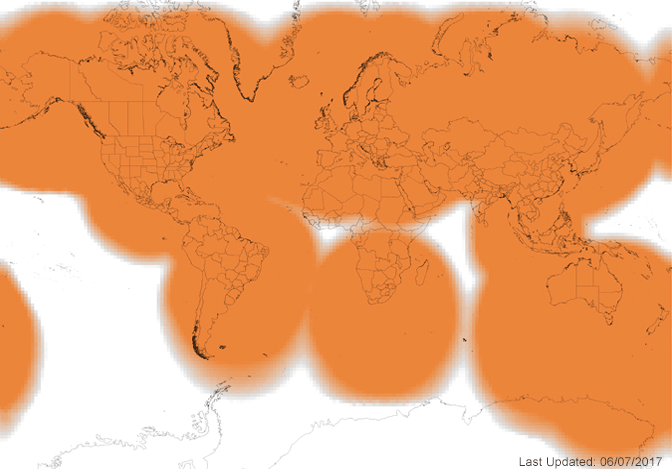

    Previous Coverage Map
  • The Globalstar simplex system provides a one-way link from the unit on the animal to the satellite, and then on to the researcher. The unit does not "know" when a transmission was successfully received, so as a default Telonics units transmit each data packet three times within about 20 minutes. This is considered a single Globalstar transmission, and it results in near 100% transmission success when the unit has a clear view of the sky. If units will be deployed in areas where the view of the sky may frequently be blocked by topography or dense vegetation, it is advisable to either provide additional data redundancy in transmissions and/or recognize that not all data will get through. When specific transmission times are defined, users should select a transmission time when they think the animal/transmitter is most likely to be in an area with good access to satellites (e.g. not when it would predictably be in a den or an area with dense cover).
  • GPS-Globalstar models support two different message formats: a short message that holds only one GPS fix or a longer message that holds ~6 GPS fixes. The longer message format is used in most applications; however, the shorter message can provide somewhat better transmission success from under vegetative cover (a GPS/Iridium option should also be considered in areas where transmissions may predictably have reduced success rates).
  • Transmissions can contain a mortality flag (which relates to whether there has been movement detected by an accelerometer within a user-defined period) and a low-voltage flag (which indicates the battery may die soon). You can receive real-time notification of mortality events via email at no additional charge.
  • Telonics GPS Globalstar units are FCC and IC certified and available for use throughout the United States and Canada with no additional licensing required for the data transfer component.
  • Data is normally retrieved through a third-party, AssetLink Global, which offers the least expensive data retrieval option for users. Globalstar data retrieval rates are lower than other satellite-based systems (~$5.00/unit/month with one daily transmission).

Other Key Features

  • In addition to the GPS and Globalstar portions of these units, they typically include a VHF transmitter. The VHF transmitters can be used to locate or monitor the collars from the ground or aircraft, including aiding in recovery of a collar at the end of a study.
  • RECON models are fully-hermetically sealed for maximum reliability, with the transmitter, battery, and interconnects sealed into a single metal housing. This is the same technology used by NASA for maintaining high performance electronics in harsh environments. With hermetic packaging, there is no problem with moisture penetration even after years of deployment, except in cases of severe physical damage to the canister. No polymeric packaging offers this level of reliability.
  • Users can program or reprogram RECON units through use of Telonics Product Programmer (TPP). TPP uses a graphical user interface, and makes it possible for users to program their own systems and simulate performance of the system prior to deployment.
  • GPS collection schedules, Globalstar transmission schedules, and VHF schedules can all be user-defined.
  • Data retrieved through the Globalstar system, or downloaded from a collar in hand, are processed using Telonics Data Converter (TDC). TDC is used to convert raw data from Telonics transmitters into data reports and to display locations on Google Earth and Google Maps. You can review TDC reports in Microsoft Excel or other spreadsheet programs.
  • The most recently received location and status of each of your GPS-Globalstar transmitters can also be obtained on smart phones or other devices without TDC loaded, via Telonics-provided username and password access through the following link: Check Your Telonics Globalstar Trapsite Transmitter Status
  • All positions determined are stored-on-board the collar, thus if the collar is able to be recovered, stored positions can supplement what was transmitted through Globalstar.
  • Telonics CR-5 or CR-7 programmable collar release mechanisms can be added to these collars.
  • A Real-time clock calendar controls all timing functions and is re-synchronized with GPS time to assure high accuracy timing. All timing is programmed using Coordinated Universal Time (UTC).
  • When turned off using a magnetic switch, these units consume less than 10 µA; this allows storage for extended periods with minimal impact on operational life.
  • Because of their low initial cost, RECON units are not available for refurbishment at reduced cost.

Electronic Specifications - GPS/Globalstar

TGW-xxxx Terrestrial Wildlife Configurations

General System Specifications

Timing AccuracyTiming is synchronized to GPS time when available. If the GPS time is not then internal timing accuracy is:
6 min/year at 25° C
30 min/yr -20 to +40° C
47 min/yr -40 to +70° C
Available SensorsMortality, Activity, Temperature, Low Voltage
Memory CapacityCapable of storing 100K fixes in nonvolatile flash memory in association with other sensor data.

GPS Receiver Specifications

Performance-163 dBm tracking sensitivity -147 dBm acquisition sensitivity
DatumWGS-84
Time to First Fix (TTFF)35sec typical (with clear view of sky)
Quick Fix Pseudoranging (QFP) 3 sec typical (with clear view of sky)

Globalstar Transmitter Module Specifications

GeneralFCC ID L2V-STX3
Industry Canada ID 3989A-STX3
Frequency Range 1610-1620 MHz
Applicable FCC Rules CFR Title 47, parts 2, 15, and 25
Power Output 100mW
Mechanical/EnvironmentalOperating Temperature Range -40 to +70 °C
Globalstar Antenna SpecificationsIn collar-mounted wildlife configurations the Globalstar antenna is mounted on the dorsal surface of the neck. The antenna is installed in a high impact nonconductive plastic housing. The form of the housing presents sloping sides so that it will be impervious to chewing and gnawing as is possible. A highly armored antenna cable connects the antenna to the instrument package.

VHF Transmitter Component Specifications

OPERATION INTERLOCK: All elements of the VHF transmitter component are forced off whenever the Globalstar transmitter module is on. This interlock device forcibly prevents simultaneous operation of the two transmitters, thus they are not considered to be co-located under FCC regulations.

Available Frequency OptionsOption 700 138-175 MHz
Up to 230MHz supported. Contact Telonics for details.
Frequency StabilityBetter than ±3 ppm at room temperature;
±5 ppm total tolerance over full temperature range
Operating Temperature-40° to + 70° C
Pulse WidthProgrammable (10 to 250 msec)
Pulse PeriodProgrammable (560 to 5000 msec)
5 separate pulse period values selectable:
Period 1 (indicates last GPS fix successful)
Period 2 (indicates last GPS fix QFP, if equipped)
Period 3 (indicates last GPS fix unsuccessful)
Mortality period (if no motion for selected time)
Dead Battery period
Available SensorsMortality Sensor (parameters are user programmable)
Transmitter TimingProgrammable seasons and duty cycles.
Power OutputProgrammable Low/Medium/High power. Effective Isotropic Radiated Power (EIRP) varies, depending on packaging, antenna configuration, and immediate environmental conditions.
* California Users: This transmitter meets the California requirement of EIRP <0.009 W for all configurations.
Emission Designator2k00P0N
Harmonic SuppressionBetter than 30 dB (>40 dB typical)
Spurious Emissions<-35 dBc at 10 kHz offset from carrier
FrequencyAging: <2 ppm/yr
Shock: <1 ppm 3000 g x 0.3 ms x ½ sine x 3 dir
VSWRRF output stable to 10:1 VSWR, all phases
Radiated harmonic levels are degraded with poor load VSWR.
Spurious emission specification maintained for >10:1 VSWR
ProgrammingTransmitter parameters programmable via antenna "1-pin" interface and Telonics TPP PC software.

Notice to United States Users

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation.

The user is cautioned that changes or modifications not expressly approved by Telonics could void the user's authority to operate the equipment.

This device contains FCC ID: UQR-CMDCSTM3

To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation distance of 20cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended.

Notice to Canadian Users

Under Industry Canada regulations, this radio transmitter may only operate using the antenna integrated into the device.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This device contains IC ID: 8863A-CMDCSTM3
