TMB-500 Mechanical Drawings

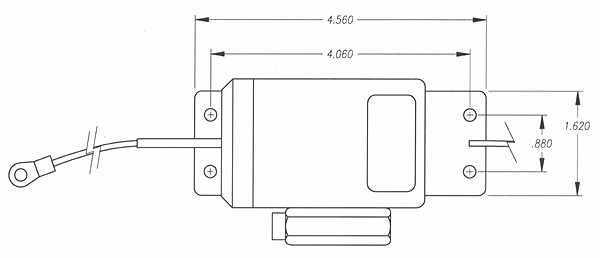

Figure 1: Top View with magnet tube (bottom), CAST_2 (left) whip antenna (left), and flat tabs for mounting (left and right).

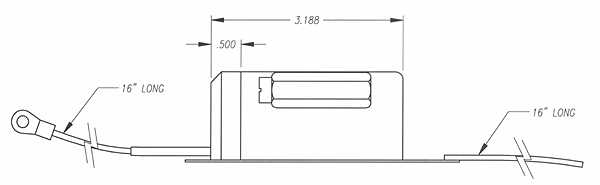

Figure 2: Side View with magnet tube (top), whip antenna (left and right), and CAST-2 (left).

Figure 3: End View with magnet tube (right).
