PT-350 Processor/Transmitter

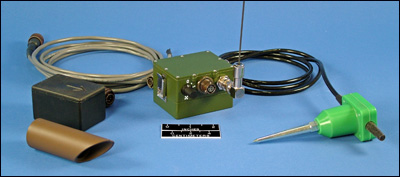

The PT-350 Processor/Transmitter is the latest evolution in Telonics' line of remote intrusion detection equipment. The PT-350 detects infrared, magnetic or seismic events. The unit's small size and 1.5 watt RF power output make it ideal for short-term covert deployment. The PT-350 is user friendly, allowing the user to configure all field adjustable parameters via rotary and DIP type switches.
The PT-350 works with any one of the three detector types: seismic, infrared, and magnetic. The unit also supports an additional sensor input that provides a switch closure upon detection (i.e. breakwire, active infrared or pressure mat). An external camera may also be triggered by the unit.
The PT-350 is capable of transmitting messages in digital format, voice format, or both simultaneously (on different frequencies, if desired), and is compatible with all EIDS equipment, including repeaters and receivers. The digital coded message can be either the modified Manchester code or the SEIWG 005 code. Any standard VHF receiver can receive the voice messages, which can also include CTCSS sub-audible tones. By connecting a remote antenna to the PT-350, users can extend the transmission range.
The electronics are sealed in an aluminum housing with a removable battery case to facilitate ease of battery replacement. The standard power supply, 2 MN1604 batteries (standard 9V transistor batteries), provides up to 90 days of operational life. An on/off sensitivity selector switch is located outside the case; all other adjustments are made inside the battery compartment. These switches allow users to select the ID number, transmit frequencies (selectable between 2 pre-programmed frequencies), and seismic detection parameters. Using a Smart Cable and appropriate PC software, users can make frequency changes, adjust detection parameters, and select from any of the 40 standard CTCSS tones.
Telonics can sell this product only to law enforcement, military, and government agencies; these products are for use only within such agencies.
Key Features
- Fixed, short-range transmitter power yields up to 3 miles transmission range (line of sight), dependent upon local conditions
- Short-term tactical deployment yields up to 90 days of continuous operation
- Pedestrian, animal, and vehicle discrimination
- Fully field configurable via rotary/DIP switches
- External field trigger for activating a camera system or other device
- Compact and lightweight - approximately 1 lb.
- Easily concealed
- Transmits voice, digital, or both formats
- Preferred by elite military forces worldwide
Specifications
Mechanical
| Size | 3.6 x 3.1 x 2.02 in
91.4 x 78.7 x 51.3 mm |
|---|
| Weight, with 2 EN22 batteries | 0.87 lbs
0.4 kg |
|---|
| Case | Aluminum with integral battery compartment |
|---|
| Electronics | Sealed in case with all connections via sealed connectors |
|---|
| Color | Olive drab green |
|---|
| Sensitivity control | 1 external 6 position on/off switch |
|---|
| ID selection | 2 10-position rotary |
|---|
| Dispatch/seismic | 1 4-position dip switch |
|---|
| CTCSS Frequency select (voice coded units only) | Programmable with user software |
|---|
| Programming jacks | 1 2.5 mm jack |
|---|
| External female connections | 1 4-pin (camera trigger, sensor) |
|---|
| External antenna connections | 1 BNC connector |
|---|
Electrical
| Frequency band | Antenna tuned to 8 MHz block |
|---|
| Minimum frequency | 138 MHz |
|---|
| Maximum frequency | 174 MHz |
|---|
| Channel spacing | 100 Hz frequency steps (25 kHz channel spacing recommended) |
|---|
| Modulation type | Narrow band FM |
|---|
| Modulation deviation, typical | +/- 3.0 kHz typical |
|---|
| Transmitter power output, low power | 1.5 W ±1 dB @ 9 V into 50 Ω |
|---|
| Transmitter power output, high power | 1.5 W ±1 dB @ 9 V into 50 Ω |
|---|
| Operating voltage, minimum | 5.8 Vdc |
|---|
| Operating voltage, maximum | 9.5 Vdc |
|---|
| Quiescent current, typical | >75 uA |
|---|
| Peak transmit current, low power | 500 mA ±25 mA |
|---|
| Peak transmit current, high power | 500 mA ±25 mA |
|---|
| Power supply | 2 EN22 or equiv. (Std. 9V) |
|---|
| Digital coding | EIDS/MIDS/EMIDS/REMBASS format |
|---|
| Voice coding | Synthesized female |
|---|
| CTCSS | Sub-audible tones, all 40 standard tones user selectable |
|---|
| Tamper Sensor | Accelerometer |
|---|
User Switch:
Input Voltage
Input Leakage
Sink Current
Output Voltage |
15 V max
< 2 mA
15 mA max
500 mV typ (at max sink current) |
|---|
Contact Switch
Internal Pull-up
External Pull-up |
270 kΩ to 3.0 Vdc
15 V max |
|---|
Operational
| Minimum operating temperature | -20° C |
|---|
| Maximum operating temperature | 60° C |
|---|
| Number of sensor inputs | 1 |
|---|
| Seismic | Yes |
|---|
| Magnetic | Yes |
|---|
| Infrared | Yes |
|---|
| Waterproof | 3 feet
1 m |
|---|
| Maximum altitude | 25000 feet
7620 m |
|---|
| Maximum humidity | 100% |
|---|
