GPS GEN 3 TGW-3680

The information below is provided for individuals who are still deploying these older systems. Some of the system information or limitations, information on frequency allocation or usage, and/or comments made on "state of the art" may be time sensitive or even outdated. Please contact Telonics if you have any questions about the information provided on this page.
TGW-3680

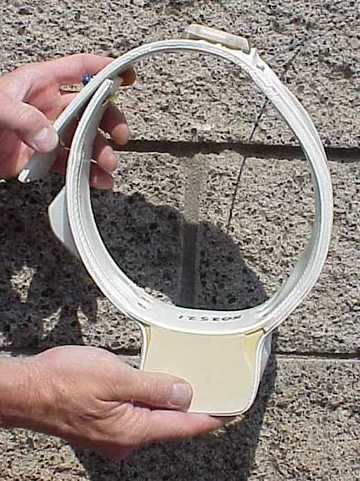

A TGW-3680 shown on a collar with GPS antenna and a CR-2a collar release. The unit is shown with Cast 4 (full cast) option. This specialized collar was developed for polar bears and incorporates a radome antenna structure that minimizes ice build up and antenna breakage.

The TGW-3680 GPS Store on Board Unit with an Argos uplink is specifically designed for studies which require the collection storage of GPS latitude, longitude, and altitude. The Argos data link provides a means for data transmission of the latitude and longitude using the Argos data collection system (DCLS). The TGW-3680 unit was designed for instrumentation of animals in the size class of caribou, moose, bears, and African plains game. The unit can be used on other species of wildlife in this size class as well. Although the basic unit remains the same many features of the data collection, the Argos transmission schedule and the attachment design are optimized for specific species and we strongly recommend that the researcher contact our staff to discuss the details of the configurations available.

Programming Data Collection

Data including latitude, longitude and altitude as well as temperature and activity data can be collected on flexible preprogrammed schedules. The fix schedule can either be provided by the researcher to Telonics and thus be installed at the factory prior to delivery, or by the researcher using a utility called PCU-3 Parameter Configuration Utility, a TSC-1 Telonics Smart Cable, and an adapter CN006313-001 (procured as a separate items).
Please note that since we are utilizing satellites which cover the entire world and we ship units throughout the world, we utilize GPS or GMT time as a standard for specifying all programmed time related parameters thus avoiding issues such as daylight savings time versus standard time in local areas. Any time parameters provided to Telonics must be specified in GMT (not local time).

An option exists that permits the user to differential correct the GPS data collected by the system for researchers who require additional accuracy in their systems. If the differential data collection option is procured only the data stored in memory can be collected. Data transmitted through the Argos system are not able to be differential corrected. Note: Since the removal of Selective Availability in 2000, many researchers have been able to use the uncorrected GPS positions without need for the enhanced accuracy associated with differential correction. Some studies however, require all the accuracy possible and Option DC-1 allows the user to collect and store all the data necessary to post process GPS data after downloading. The DC-1 option must be purchased for each unit where differential correction is required. In addition to the DC-1 option, the user must make arrangements to acquire the appropriate GPS base station files for post processing. A utility program called DCU-1 used in conjunction with a Trimble program called Pathfinder Office allows the user to integrate the differentially correctable data with the appropriate base station files (acquired separately) and calculate differentially corrected GPS positions. Even under the best conditions not all positions can be differentially corrected.

Examples of the number of GPS fixes which can be attempted versus the operational life of the system:

GPS Locations/Day ARGOS Uplink Hours/Day Operational Life
(Days)
Number of Stored Positions
3 4 hours 1410 4230
5 4 hours 830 4150
8 two 4 hour periods 482 3856
12 two 4 hour periods 394 4728

Operational life estimates provided above are based upon the assumption that the time required for the GPS unit to fix position is 90 seconds, a 200 sec. Argos repitition rate using a 500mw Argos transmitter and a 32 byte message containing the last 6 GPS fixes. The estimates are based on battery performance at 25° C. The battery capacity should be further derated for continuous operation at a temperature of -40° C.

Sensor Data for SOB Systems

Activity Sensing Option

Option TACT-1 measures transitional events based on a motion sensitive switch installed inside the GPS unit. The user is able to specify a data collection interval. The data collection interval is initiated at the same time as the initiation of the each GPS Fix attempt. In this option the number of seconds during which a switch closure is detected are accumulated during the user specified data collection interval. The actual number returned is a percentage of the total number of seconds in the entire collection interval during which a switch closure event occurred. The resolution is 0.5% of the total data collection interval. This type of information is more useful if the researcher is interested in transitional information such as the number of times an animal lowers its head to feed during the data collection interval. Activity data are stored in memory and are not recoverable using the Arogs data link.

Exact rules and limitations for setting the data collection interval are described in the Telonics GEN 3 GPS System User's Manual.

Temperature Sensor Option

Option TEMP-1 measures the temperature inside the unit over the temperature range of -55° to +125° C. The resolution is 1° C. Temperature data are stored in memory for download at the completion of the study. These data are not transmitted through the Argos data link

Please consult the factory for details in optimizing data collection.

Downloading Units

Units can be downloaded by the researcher using the utility DU-3, the TSC-1 Telonics Smart Cable, and an adapter CN006313-001.

Argos DCLS

The use of the Argos system as a satellite based data transfer system allows the user an automated and remote data transfer/recovery capability. This approach does not require that the user be present to acquire the data as the information is transferred directly to the Argos DCLS on board the NOAA polar orbiting satellites. The user does not need to purchase a specialized receiver to recover the data. The service is world wide in scope, however, due to the nature of polar orbiting satellites the intensity of coverage (i.e. number of satellite overpasses) in the polar regions is greater than at the equator. Program approval must be sought and acquired and a contract for service must be put in place to use the Argos DCLS. Specific contact numbers, addresses, emails and the address and link to Argos website can be accessed by going to the section of the Telonics website that deals more generally with the Argos system. Argos offers two levels of service. The first level provides both a Doppler positioning service and a data recovery service. However, since the unit being deployed already contains a GPS positioning capability the Argos Doppler positioning capability is not required. Only the Argos data collection capability is needed. The user should note that data collection service costs substantially less than the positioning service. Users should contact the appropriate Argos representatives directly for specific quotations on service rates and the special rates for government entities.

The unit is designed to support a flexible schedule for the Argos uplink that can be optimized to periods of frequent satellite overpasses anywhere in the world. The uplink message uses a proprietary format T03 developed at Telonics. The format supports the transmission of the last 6 position fixes acquired by the GPS system. The format reports the time and the location data to the nearest .0001 degrees latitude and longitude. Error correction codes are provided for each location to help assure accuracy of the recovered data. Additional format details can be obtained by requesting a GPS Manual.

It is important to note that all memories used to store data on board the system are totally nonvolatile and do not require any battery backup ensuring that the data are secure even after years of storage.

Specifications

  • Canister Measurement: 3.25 x 2.75 x 2.25 inches (8.3 X 7.0 X 5.7 cm).
  • Canister Weight: Approximately 570 grams (this does not include the weight of a collar or protective casting). Please note that when attaching the canister to a collar, a bracket must be placed on the canister. The standard orientation of the bracket is to the 3.25 X 2.75 inch surface.
  • Collar Configuration Options: GPS collars must be custom configured to the study species. The neck circumference adjustment range must be specified to +/- 2.0 inches to assure optimum positioning of the hardened GPS antenna on the dorsal side of the neck. The collar width is also an option that is tailored to the study animal and must be specified by the researcher.
    As an example, a completed unit configured with a GPS antenna and mounted on a 2.5-inch wide butyl belting collar with an adjustment range of 26 to 30 inches would weigh approximately 1520 grams This weight includes the weight of 1 piece of #1 collar attachment hardware and end cast of urethane polymer (Cast 5 Option).
  • Protective Casting Options: For all GPS applications, it is a standard and advisable to cast either the antenna end of the transmitter housing (CAST-5) or the entire housing (CAST-4) in a high-density polymer that acts as a shock absorber. The full cast can add 80 grams of additional weight to the total system depending on the configuration. Note: All systems are hermetically sealed in the metal canister and the role of the polymeric cast is exclusively to act as a shock absorber not as a waterproofing agent.
  • Storage and Operational Temperature Range: -40° to 70° C

VHF Locator Beacon Options

The VHF transmitter performs several functions in the TGW-3680 store on board system:

  1. The unit can be monitored in the same way as other VHF transmitters during the course of the study. The animal wearing the collar can be relocated as required by the study design of the project.
  2. The unit provides insight into the performance of the GPS system's success throughout the course of the study. All SOB units are equipped with Option 400 GPS Last Fix Status. Using this option, the VHF transmitter provides one of two pulse periods. The distinctive pulse periods report to the researcher on the success or failure of the last attempted GPS position.
  3. The unit can be used to provide mortality sensing of the instrumented animal. MS6 Mortality Sensor is optional on all systems. A special pulse rate indicates that the unit has been inactive for a period exceeding (a user preselected time interval) mortality time out period.
  4. The VHF beacon allows the researcher to recover the collar after the data collection period or if the collar is released from the animal using a device like the CR-2a Programmable Collar Release.
  5. The VHF signal is monitored to assure that proper initialization of the GPS system has occurred at start of the system operation.

The VHF portion of the system is critically important to the SOB system and therefore care must be exercised to assure adequate operational life of the beacon. As an example, the VHF unit can be programmed to transmit pulses at a rate of 60 BPM or beats per minute (PP (pulse period) = 1000msec) when the system is on a living animal and the last GPS fix attempt was successful. The unit can be programmed to transmit pulses at 50 BPM (1200 msec) when on a living animal and the last attempt at a GPS fix was unsuccessful. The unit can be programmed to transmit pulses at 75 BPM (800sec.) when the animal has been inactive for a prolonged interval or is dead. Each pulse rate uses the battery capacity at a different rate and thus the operational life of the beacon is a direct function of the beacon pulse rate. Batteries are also affected by the environmental temperature during operation of the system. Most battery electrochemical systems provide less capacity at colder temperatures.

In the TGW-3680 configuration this corresponds to the following:

  • 60 BPM = 41 months of operational life at 25° C, 31 months at -20° C and 21 months at -40° C
  • 50 BPM = 48 months at 25° C, 37 months at -20° C, and 25 months at -40° C
  • 75 BPM = 33 months at 25° C, 25 months at -20° C, 17 months at -40° C

In the real world application the VHF transmitter and its battery may spend time at different pulse rates and at different ambient temperatures. The actual achieved operational life of the VHF beacon will be determined by the sum of all these factors.

The staff at Telonics will help you design the proper regime for your specific study conditions and species. As an example, we often recommend slower pulse rates for the inactive period for species which undergo a torpor or hibernate. This approach helps extend battery life when the animal is inactive and generally immobile.

An additional technique for extending the battery life of the system is to use a Duty Cycle for the VHF transmitter. This approach can be used to turn the VHF transmitter OFF at night if no monitoring is to be done during this period. Alternatively, the VHF unit could be turned off on the weekends and operate only during the week. Flexible duty cycles are available using the Option MDC Duty Cycles. Transmitters can be programmed to cycle through up to eight periods in order to extend battery life. Within each period, the transmitter can either be "on" or "off". Pulse rates can be uniquely defined for each "on" period. Each period can be defined from eight seconds to approximately 50 days in length.
