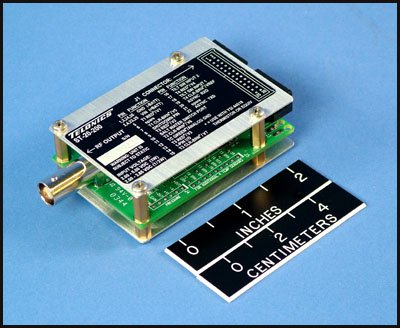

ST-20-200T
Size L x W x H (in, mm) Weight (g) Low Power (mW) High Power (mW)
3.67 x 1.90 x 1.019
93.2 x 48.3 x 25.9
64 500 (Typ) mW 1000 (Typ) mW

Telonics designed the ST-20-200T with environmental research applications in mind, especially those in the fields of oceanography and meteorology. The ST-20-200T allows researchers to measure multiple temperature sensors with high accuracy according to a specified schedule, and then uplink the data according to another schedule. Applications include monitoring sea surface or subsurface temperatures with high accuracy.

Key Features

  • Monitors up to 4 thermistors to within 0.05°C worst-case accuracy and ~0.0006°C precision
  • Monitoring for up to 8 thermistors available on special request
  • Argos certification allows researchers to forego the rigorous certification process
  • Saltwater switch allows oceanographers to monitor drogue integrity by emulating a surface float submergence sensor
  • Shutdown mode allows users to override operation using an external switch

Specifications

Mechanical

Size3.67 x 1.90 x 1.019
93.2 x 48.3 x 25.9
Weight64 grams

Electrical

Supply voltage, minimum2.0 V
Supply voltage, maximum, low power3.65 V
Supply voltage, maximum, high power5.0 V
Output Impedence50 Ω
Low power level500 (Typ) mW
27 ±2 dbm
High power level1000 (Typ) mW
30 ±2 dbm
Minimum operating temperature70° C
Maximum operating temperature-40° C
Argos transmission frequency401.618 to 401.680 MHz
Modulation (BPSK)-1.1 to +1.1 ±0.1 Radians
Quiescent current, typical25 µA
Spurious emissions-45 dBc
Temperature measurement error,
maximum (calibrated)1
0.05° C
Temperature measurement error,
maximum (uncalibrated)1
0.15° C
Temperature measurement precision,
40 degree range
0.0006° C

1. Measured in the range -2°C to +38°C with a Linear YSI 44018 thermistor.
