MOD-125 VHF Transmitter

MOD-125 VHF Transmitter
MOD-125 transmitter on 1/32" butyl over 1/16" butyl collar
using a 6" antenna with TEA-3 and BTAB-1 antenna options
Dimensions (in, cm) Canister Weight (g) Life @ 60BPM
Standard Pow (months)
Life @ 60BPM
Min Pow (months)
Transmitter Electronics Transmitter Options
1.6 x 0.9 x 0.8
4.1 x 2.4 x 2.0
53 12.3 31.5 MK-8 MS6, MA, MS9, MDC, MS4, MS5

Telonics designed the MOD-125 transmitter configuration for small mammals. The MOD-125 configuration provides the maximum set of VHF options in a relatively small canister.

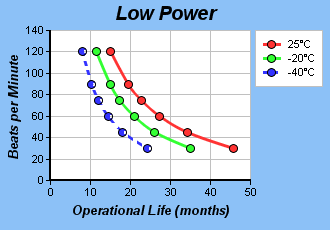

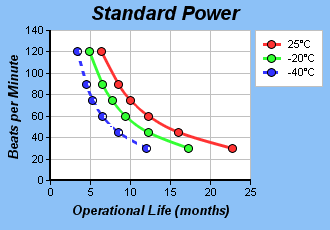

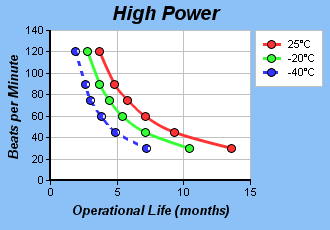

Operational Life Information

Specifications for Transmitter Electronics

MK8 Transmitter General Specifications

The MK8 Transmitter is a single frequency, microprocessor controlled pulsed-CW transmitter, designed for operation in the 140 - 220 MHz frequency range.

Frequency Range 140 - 220 MHz
Frequency Tolerance ±17 ppm max @ 25°C
±25 ppm max -40°lC < Temp < +60°C
(<7ppm typical w/ variation in load impedance - 6:1VSWR)
(<3ppm typical over supply voltage range at room temperature)
Temperature Range -40°C to +60 °C (Note: Temperature range is for the transmitter only. The power supply must provide the required peak current and voltage requirements for the transmitter over the expected temperature range.)
Shutdown Component Externally shutdown by presence of a small magnet
Output Power
Output Power Option Peak Power Output Levels
Relative to Standard Power
Low 0.5 x
Standard 1 x
High 2 x
Extra high 5 x
RF Pulse Width 15 msec standard
Can optionally be configured from 12 - 255 msec
Pulse Period Configurable from 200 - 10000 msec (6-300 Bpm)
Spurious Emissions Non-coherent Spurs <-50 dBc
Harmonic Suppression Coherent Spurs <-10 dBc
Available Sensors Motion (Hg switch - activity/mortality) - options MS6, MA
Position (Hg switch - head up/head down) - option MS9
Temperature Triggered Mortality Sensor - option MS5
Temperature Measurement Sensor - MS4
Option Resolution at standard center temperature of 37°C Calibrated Accuracy
MS4-400 0.4 deg ±(0.6°C + cal. uncertainty*)
±20°C from center temperature
MS4-400 0.4 deg ±(0.9°C + cal. uncertainty*)
±40°C from center temperature
MS4-410 0.1 deg ±(0.15°C + cal. uncertainty*)
±10°C from center temperature
*(Note: "Cal. uncertainty" is the error inherent in the calibration procedure. This value is dependant on the end users calibration procedure and equipment accuracy.

For example, if the calibration process measures temperature to within ±0.1°C, then the MK8 calibrated accuracy would be:
- For 0.4 deg resolution option
±(0.6deg + 0.1deg) = ±0.7degC (±20°C)
±(0.9deg + 0.1deg) = ±1.0degC (±40°C)

- For 0.1 deg resolution option
±(0.15deg + 0.1deg) = ±0.25degC (±10°C)
Seasonal Timing 8 factory programmable on-off duty cycles - option MDC
Typical timing accuracy of < ± 30 min/yr is reasonable for most applications
Chart reflects known error limits
Temperature (°C) Error Limits (min/yr)
-40°C ~ -73 to -105 (extrapolated)
-20°C -25 to -58
0°C 2.6 to -29
25°C ±16
50°C 2.6 to -29
70°C -25 to -58
FCC Emission Designator 1k00P0N * California Users - The MK8 transmitter exceeds the emission designator requirement of 2k00P0N for operation in California. The MK8's 1k00P0N emission designator is identical to 2k00P0N except that it occupies only half of the 2 kHz bandwidth allowed by the State of California for wildlife tracking.

VHF Transmitter Option Descriptions

MK8 Microprocessor Control Sensor Options

Collar Options



Size1.6 x 0.9 x 0.8
4.1 x 2.4 x 2.0
Weight53 grams
PackagingHermetic 1
Maximum allowable leak rateWaterproof (< 1 part in 106 atmospheric CC per second) 2




Minimum operating temperature-40° C
Maximum operating temperature65° C
Operational life12.3 months @ 60 BPM and 25° C

1: All electronic components, including batteries, sensors, and power sources are totally enclosed in a hermetically sealed metal housing, which is plated to resist corrosion. All external connections (antennas) are made through military approved glass-to-metal feed-throughs.

2: Helium leak bomb test- capable of operational life in 100% humidity, or while fully submerged in fresh water. (Transmission range will be reduced while transmitter is submerged.)
