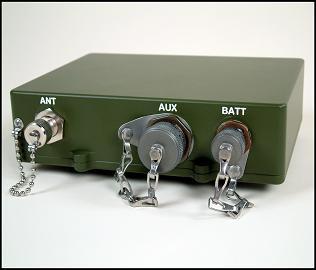

RP-3000 Voice/Digital Portable Repeater
The RP-3000 is a small, portable, simplex repeater designed for use with the EIDS series of processor/transmitters. The RP-3000 extends the operational range of an intrusion detection system by relaying the signal from the transmitters to either a portable or fixed base site. Using one or more repeaters provides unlimited flexibility when deploying the EIDS system in rough, hilly terrain where line-of-sight is not possible, or when strategic operations require monitoring at a location far removed from the sensored area.
The RP-3000 can function as a digital message format repeater AND as an audio repeater. The repeaters are microprocessor-controlled and allow users to select a variety of parameters via a PDA handheld programmer in the field or a laptop/desktop computer with Windows® XP, Vista, or 7 operating system.
The compact, waterproof, machined aluminum housing is designed for above ground or direct burial deployment. The RP-3000 is powered by 12 volt DC power source (sold separately).
A Tamper mechanism sends an alert if an intruder attempts to disable the system, or if the external power supply is interrupted (disconnected). The RP-3000 also has a programmable trigger for activating a camera system or other device. A Serial interface allows users to export digital messages to a network or other device.
Telonics can sell this product only to law enforcement, military, and government agencies; these products are for use only within such agencies.
Key Features
- user selectable transmitter power levels (1.5 or 5 watts)
- Up to 7 miles transmission range (line of sight), depending on local conditions
- Tamper, low battery, and daily status messages
- Continuous operation or operation on selected days of the week and hours of the day
- Ability to receive digital messages and repeat in both voice and digital format
- Ability to receive and repeat voice transmissions with or without CTCSS Sub-audible Tones
- Independent receive and transmit frequencies
Specifications
Mechanical
| Size | 6.875 x 6.0 x 1.75 in
175 x 152.5 x 45 mm |
|---|
| Weight, without batteries | 2.1 lbs
0.950 kg |
|---|
| Case | Aluminum Housing |
|---|
| Electronics | Hermetically sealed with all connections via glass-to-metal feed-throughs |
|---|
| External power jacks | 1 Bendix-type PT07A-8-4S |
|---|
| External programming jacks | 1 Bendix-type PT07A-12-10S |
|---|
| External RF connections | 1 TNC |
|---|
Electrical
| Minimum frequency | 138 MHz |
|---|
| Maximum frequency | 175 MHz |
|---|
| Frequency resolution | 10 Hz |
|---|
| Frequency stability1 | 5 ppm |
|---|
| Channel spacing | 25 KHz |
|---|
| Modulation type | Narrow band FM |
|---|
| Digital modulation formats | EIDS, Binary, BCD, SEIWG 005A (MIDS/EMIDS, REMBASS) |
|---|
| Voice modulation formats | Female voice, 37 standard CTCSS tones |
|---|
| Voice playback time, maximum | 16 seconds |
|---|
| Modulation deviation, typical | 3.0 KHz |
|---|
| Transmitter power output, low power | 1.5 W ±1 dB @ 12 V into 50 Ω |
|---|
| Transmitter power output, high power | 5.0 W ±1 dB @ 12 V into 50 Ω |
|---|
| Operating voltage, minimum | 9 Vdc |
|---|
| Operating voltage, maximum | 16 Vdc |
|---|
| Quiescent current, typical2 | 160 µA |
|---|
| Quiescent current, typical, over voltage and temperature | 500 µA |
|---|
| Peak transmit current, low power | 0.65 A ±0.2 A @ 12 V, 50 Ω |
|---|
| Peak transmit current, high power | 1.25 A ±0.3 A @ 12 V, 50 Ω |
|---|
| Power supply | Available NP24-12B battery pack |
|---|
| Receiver sensitivity | 0.3 uV rms 12 dB Sinad |
|---|
| Receiver operating current, digital | 10 mA ±2 mA |
|---|
| Receiver operating current, voice, no incoming signal, CTCSS enabled | 10.5 mA ±2 mA |
|---|
| Receiver operating current, voice, incoming signal, CTCSS enabled | 14 mA ±2 mA |
|---|
1. Frequency is at least this stable over full temperature and voltage range
2. At 25° C, after 72 hour stabilization
Operational
| Minimum storage temperature | -30° C |
|---|
| Minimum operating temperature | -20° C |
|---|
| Maximum operating temperature | 70° C |
|---|
| Number of sensor inputs (optional) | 1 |
|---|
| Seismic | No |
|---|
| Magnetic | No |
|---|
| Infrared | No |
|---|
| Waterproof | 3 feet
1 m |
|---|
| Maximum altitude | 25000 feet
7620 m |
|---|
| Maximum humidity | 100% |
|---|
