Programming and Data Recovery Cables and Adapters

Programming and Data Recovery Cables

The TSC-7A is a multi-use interface cable terminated with a USB A connector and a male BNC (bayonet style) connector. The cable is used to connect various Telonics products to a computer when using Telonics Product Programmer (TPP), Telonics Data Converter (TDC), or the CR-2a BCP-2 programming software. The BNC connector allows quick and easy attachment of various adapters (available separately, see below). Length of the TSC-7A is approximately 67 in (170 cm).

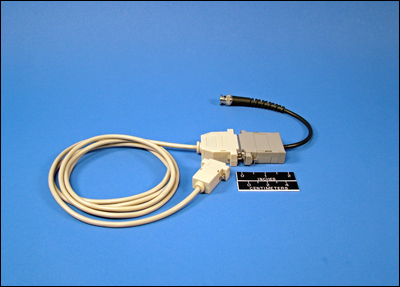

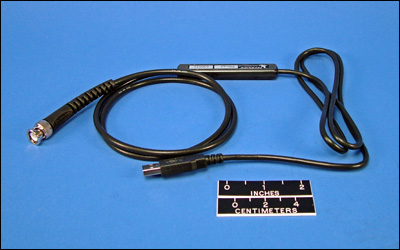

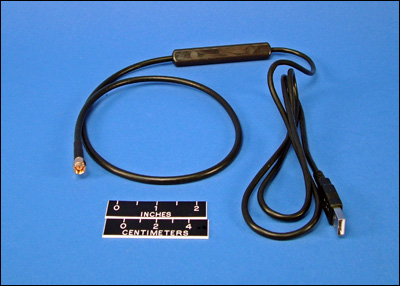

(The TSC-7A replaces the TSC-3 and TSC-4 series cables - both of which still do function with Telonics software.)

For use on these Telonics Products: Most GEN 4 GPS systems, Argos systems, and collar release mechanisms when programming or downloading data.

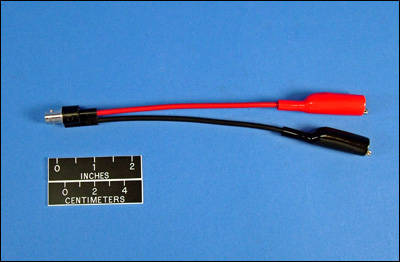

CN008351-001: Adapter, female BNC to alligator clips for use with the TSC-7A cable. This adapter is used for systems where programming/download connections are made using the antenna tip or saltwater switch buttons. Length of the adapter attached is approximately 7 in (18 cm).

For use on these Telonics Products: Most GEN 4 GPS and Argos systems

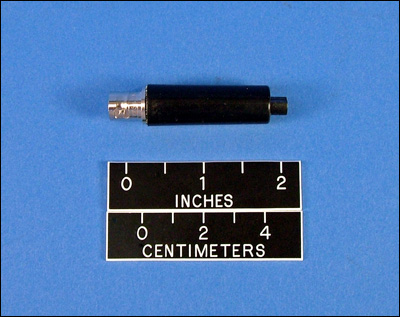

CN006977-001: Adapter, female BNC to CR-2a or CR-5 Collar Release device, for use with the TSC-7A cable.

For use on these Telonics Products: CR-2a and CR-5 collar releases
WI009742-001: Adapter, female BNC to CR-7 Collar Release, for use with TSC-7A cable.

For use on these Telonics Products: CR-7 collar release

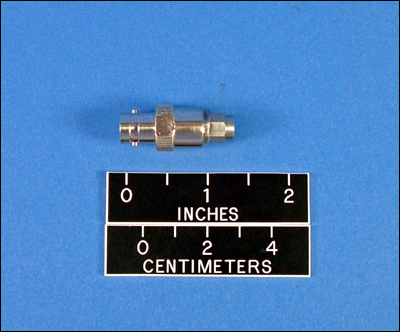

CN006313-001: Adapter, female BNC to male SMA (miniature threaded connector) for use with the TSC-7A cable. This adapter is typically used to interface to systems designed for environmental research applications.

For use on these Telonics Products: TGE-400/401 oceanographic systems
CN008382-001: Adapter, female BNC to car battery style clips for use with THE TSC-7A cable. This adapter is used to interface with marine systems such as those used in manatee or dugong research. Overall length of the adapter is approximately 7 in (18 cm).

For use on these Telonics Products: TMT-462 GPS/Argos system for manatee or dugong
TSC-6C: Connects the TR-4 to the user's computer for programming channels.

For use on these Telonics Products: TR-4

Power Cable and Battery Pack Options

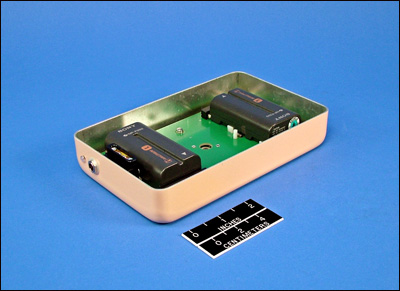

PS-006476-100 Rechargeable Li-Ion Battery Pack
A direct replacement for the Alkaline Primary Battery Pack which comes with all TR-5 Receivers. This option provides the user with the most advanced and energy dense rechargeable power system available today. Note that Li-Ion systems do not have the "memory" problems associated with the Nickel-xxx electrochemical systems of the past. This battery pack contains two independent batteries for redundancy and is capable of running the TR-5 unit for 24 hours without the display backlight and 18 hours with the backlight turned on. The recharge time for the system is just 4 hours. This option comes with its own charger, the PS006477-001 AC charge cord and includes two of the PS006478-001 rechargeable Sony Li-Ion batteries. No special tools are required for installation.

For use on these Telonics Products: TR-5

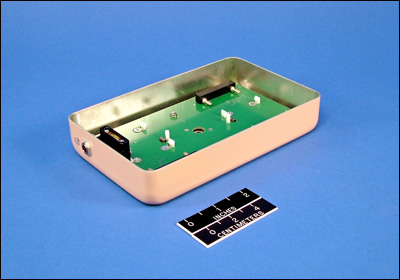

PS-006476-110 Rechargeable Li-Ion Battery Pack Housing
As above, but supplied without the PS006478-001 Li-Ion Batteries

For use on these Telonics Products: TR-5

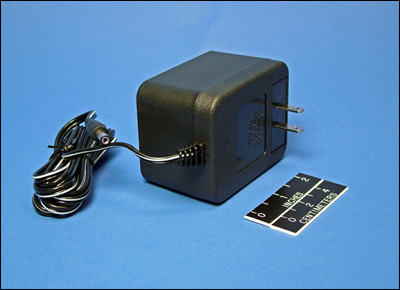

PS-006477-001 AC Charge Cord

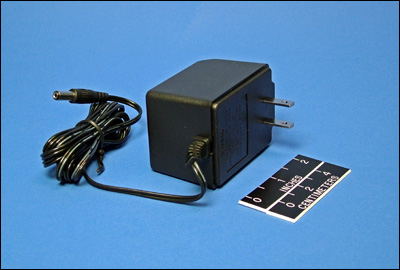

This special replacement charge cord is used for charging the PS-006476-100 Battery Pack Rechargeable Li-Ion Battery Pack from any 110-120 VAC 50/60 Hz outlet power source. This heavy-duty cord is designed specifically to charge both Li-Ion batteries while installed in the PS-006476 battery Pack. Please note this is not the same as the RP-2-110 AC Power Cord used to operate the TR-5 directly from 110-120 VAC 50/60 Hz walls current.

For use on these Telonics Products: TR-5

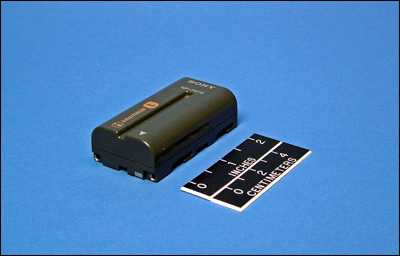

PS-006478-001 Li-Ion Battery
This is a replacement battery (one battery) for the PS-006476 Li-Ion Battery Pack. Two of these batteries are contained in the PS-006476-100.

For use on these Telonics Products: TR-5

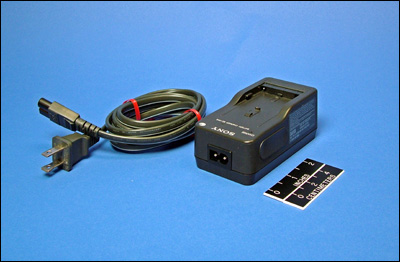

PS-006479-001 Li-Ion Battery Charger
This charger can be used to charge a single PS-006478-001 battery directly when not installed in the PS-006476-100 or PS006476-110 Rechargeable Battery Packs.

For use on these Telonics Products: TR-5

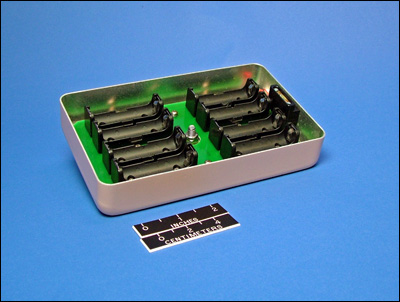

PS-005893-110 Alkaline Battery Pack Housing
This is a replacement housing for the 8AA Alkaline battery pack housing which comes with the TR-5 Receiver. This is the housing only and does not include the 8 Alkaline batteries.

For use on these Telonics Products: TR-5

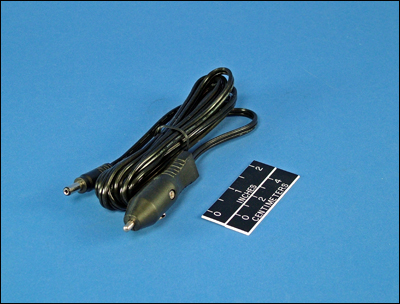

PS000338-002 12 Volt DC Charge/Power Cord
Used to power the TR-4 Receiver from most car accessory power jacks ("cigarette-lighter" jack). This cord can also be used to charge TR-2 Receiver or TDP-2 Data Processor.

For use on these Telonics Products: TR-4, TR-2, TDP-2 (the TR-2 and TDP-2 are no longer produced by Telonics)

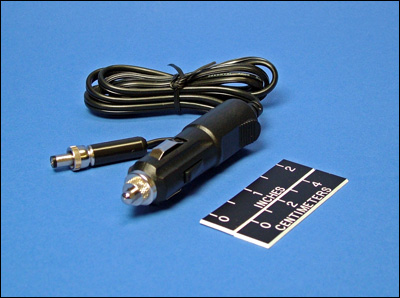

PS-007248-001 12VDC Power Cord
Used to power TR-5 Receiver from a 12 volt DC, negative ground electrical system (automobile battery). The plug on this cord requires a cigarette lighter on the power source.

For use on these Telonics Products: TR-5
PS-009736-001 110-240 VAC Power Cord
Provides direct power to the TR-4 or TR-5 Receivers from a 110-240 VAC 50/60 Hz source.

For use on these Telonics Products: TR-4, TR-5

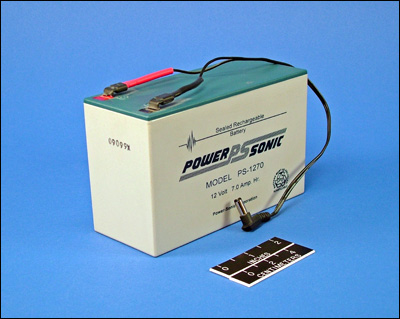

RP-7 Field Power Pack
12 VDC. 7 Ampere-hour field power source. Sealed lead-acid, high impact case. 90 day warranty. Dimensions: 6.0 X 2.6 X 4.0 inches. Weight: 5.5 lbs. Designed for use in the TR-5 Data Acquisition System (see RC-9 Instrument Case). One RP-7 Power Pack will power the TR-5 for approximately 77 hours with TR-5 current requirement at 90 mA. Current requirement depends on RF/AF gain selected and backlight on versus off. Two RP-7 Power Packs will fit within the RP-9 Instrument Case along with the TR-5. Requires RP-14-110 charger (purchased separately). International customers may also require additional power outlet adapters and AC Step down Transformer (RP-5).

For use on these Telonics Products: TR-5
(no image available)

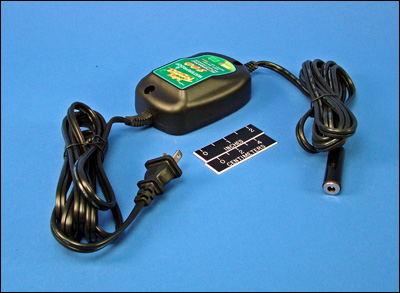

RP-14-110 Charger
110-120 VAC, 12 VDC, 800 mA for charging RP-7 Field Power Pack.

For use on these Telonics Products: TR-5
PS-008861-001 Charger
110-120 VAC, 12 VDC, 800 mA for charging RP-7 Field Power Pack. Note: For international customers (excluding Canada), adapters are required.

For use on these Telonics Products: TR-5

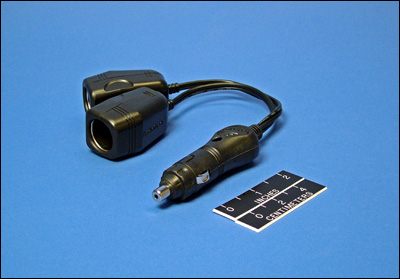

ADP-2 12 VDC Outlet Adapter
One cigarette-lighter plug on one end, two cigarette-lighter jacks on other.

For use on these Telonics Products: TR-5

Audio Accessories

Headphones and Headsets

AU 002432-001 Earbuds
In ear design blocks background noise. Silicone ear plugs for a comfortable fit. 3.5 mm stereo plug. Low impedance 16 ohm. 44.5 in straight cord.

For use on these Telonics Products: TR-4, TNR-3000
RH-1 Headphones
High quality, noise canceling, low impedance headphones designed for heavy use. Supplied with a 4.5 ft. straight cord, 0.25" plug, and foam filled ear seals. (These headphones are a modified version of the David Clark H-7050.)

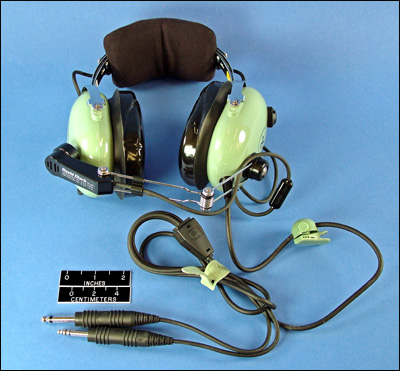

TAH-2 High Quality David Clark Headset
Amplified dynamic, noise-canceling microphone with adjustable gain, adjustable volume control; five-foot straight cord with PJ-068 and PJ-055 standard aircraft plugs, 550 grams, 600 ohm impedance.

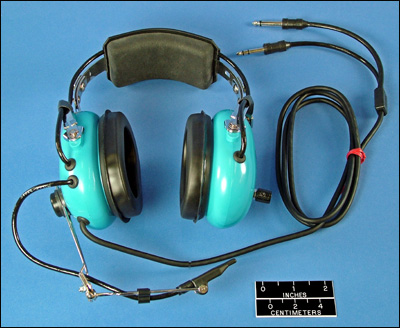

S-40 Sigtronics Headset
Electric condenser-type, noise-canceling microphone, adjustable volume control, five-foot straight cord with PJ-068 and PJ-055 standard aircraft plugs, 450 grams, 600 ohm impedance
(no image available)
S-40H Sigtronics Helicopter Headset
Similar to S-40, but with coil cord and U-174/u plug.

Headphone and Headset Accessories

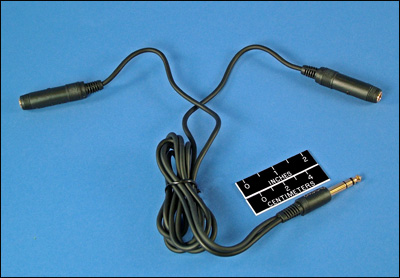

RW-4A "Y" Adapter
Allows the use of two low-impedance headsets with a single receiver.

For use on these Telonics Products: RH-1, TAH-2, S-40, S-40H

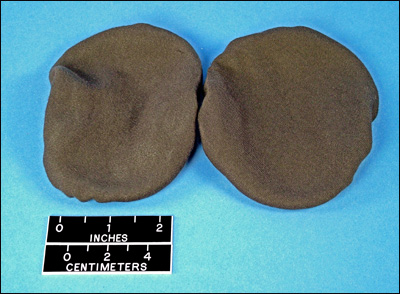

TAH-4 Cloth "Comfort Covers" (pair)
Soft cloth covers fit over ear seals and permit air circulation in hot weather and insulation in cold weather.

For use on these Telonics Products: RH-1, TAH-2, S-40, S-40H

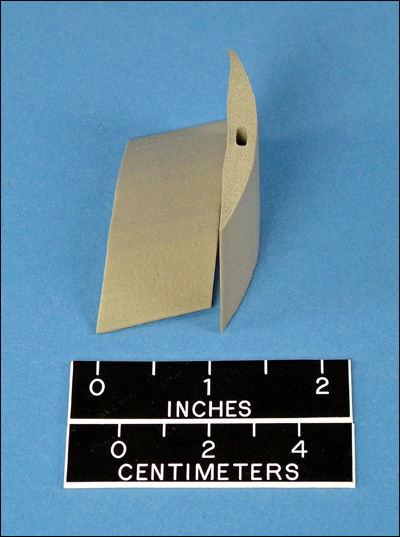

TAH-5 Eyeglass Adapters (pair)
Soft foam spacers conform to both your head and the headphone ear seals to prevent noise leaks and pressure on the temples.

For use on these Telonics Products: RH-1, TAH-2, S-40, S-40H

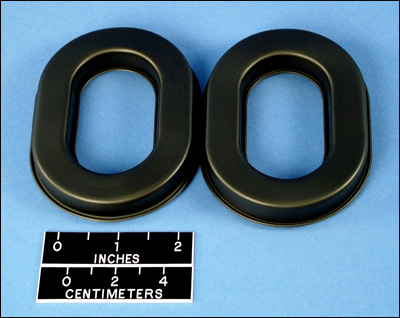

TAH-6 Replacement Cushion Ear Seals (pair)

For use on these Telonics Products: RH-1, TAH-2, S-40, S-40H
SPK-1 External Speaker
(2-1/4 inches W x 2-1/2 inches D) with mounting bracket, 6.5-foot cord and 1/4-inch phone plug.

For use on these Telonics Products: TR-4, TR-5

Aircraft Intercom and Audio Distribution Systems

A basic aircraft audio distribution system that includes the SPO- 22 Intercom, TR-2/TS-1 Receiver/Scanner, and TAH-2 Headsets.

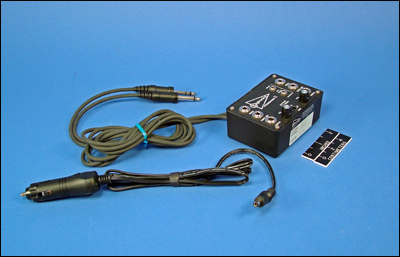

SPO-22 Transcom II Aircraft Intercom and Audio Distribution System
Automatic activation offers pilot-to-passenger hands-free communication, push-to-talk control of VHF ATC aircraft radio, input for one telemetry receiver, and output for conventional audio tape recorder to log cockpit audio and telemetry data. ATC radios may be controlled by either pilot or copilot. Powered by an internal 9V battery, the unit provides approximately 40 hours of operation. A four-foot cord is also included for powering via a cigarette lighter jack. Standard model is designed for two headsets, with headsets purchased separately. (Headsets are required for each person who will be communicating through the system). Includes RW-8 shielded adapter cable for connecting intercom with a TR-2 receiver.

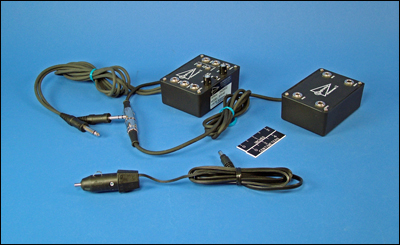

SPO-42 Four-Way Aircraft Audio
Same features as SPO-22, but includes an auxiliary unit for the rear seat with inputs for two additional headsets. Permits four people to have voice-actuated communications and monitor telemetry.
(no image available)
SPO-62 Six-Way Aircraft Audio
Same features as SPO-22, but accommodates up to six headsets.

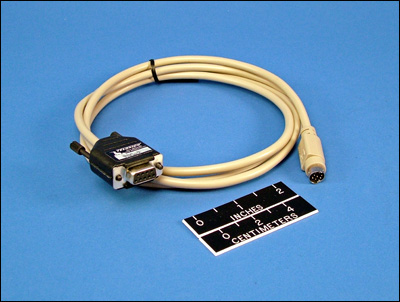

TSC-2 Smart Cable connects the TR-4 to the users PC for programming channels.

Antenna Control Units

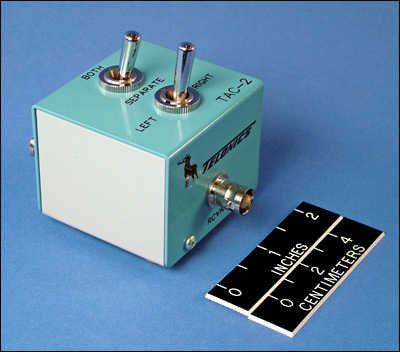

TAC-2 Control Box
Used to switch between two antennas, with "right", "left" and "both" positions. Typically used to combine two antennas or switch between antennas mounted on right and left struts of aircraft to aid in aerial location of transmitter. Warranted for 100,000 operations.

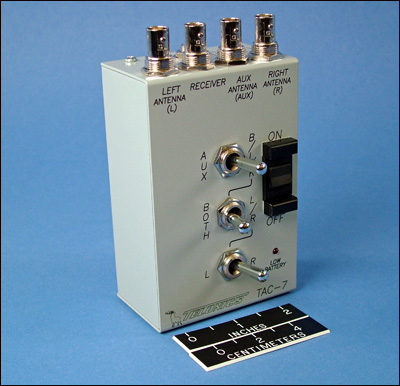

TAC-7 Control Box
Used to switch between two antenna, with "right", "left", and "both" positions. In addition to switching between left and right antenna, there is an added capacity to switch a third (auxiliary) antenna, typically used for omni-directional _signal finding_. Has option of plugging in a remote (yoke-mounted) toggle switch to select between the left and right antennas. Toggle switch (e.g. TPT-1 or TPT-2) not included.

For more information, including tech specs, on the Telonics TAC-7, please see the related Telonics Quarterly (V 7, N3, Fall & Winter 1994, "TAC-7 Electronic Antenna Switch Box").


Antenna Control Unit Accessories

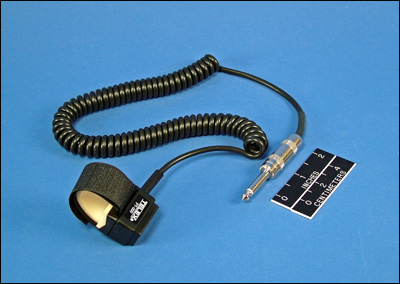

TPT-1 Toggle Switch
With Velcro band and coil cord for yoke- or stick-mounting. Allows a pilot to toggle between the left and right antennas.

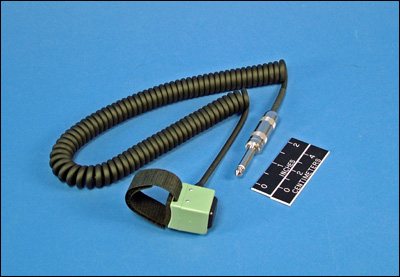

TPT-2 Toggle Switch
With Velcro band and coil cord for yoke- or stick-mounting (highest quality). Allows a pilot to toggle between the left and right antennas.

Miscellaneous Accessories

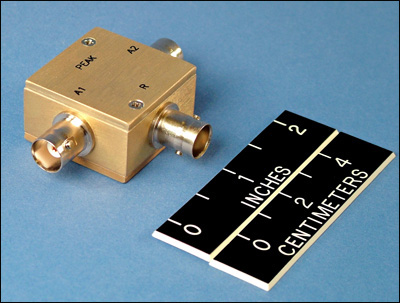

TAC-4 Two-Port Peak Combiner/Splitter
Zero degree phase shifter (combines two 50 ohm signal sources and provides a matched 50 ohm combined output). Used to split an incoming signal from an antenna system for the simultaneous use of two receivers.

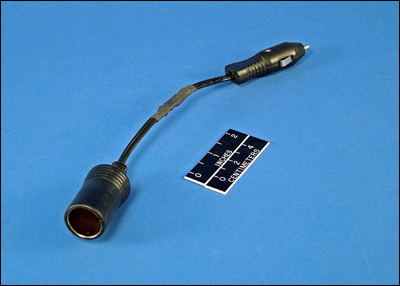

RP-3-24 24-28 Volt DC Charging Adapter
Allows charging of TR-2 Receiver or TDP-2 Data Processor from 24-28 VDC negative ground electrical system (e.g., an aircraft power supply). Must be used in conjunction with RP-3-12.

For use on these Telonics Products: TR-2, TDP-2

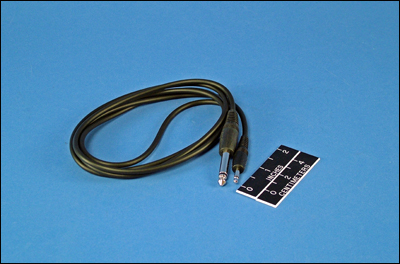

RW-8 Adapter Shielded Cable
Connects TR-2 Receiver to aircraft intercom system

For use on these Telonics Products: TR-2
